"How To" Install Preamp Ukelele
Copyright 2017 "Musical Instrument Repairs WA (MIRWA)"             All Rights reserved    E-Mail: service@mirwa.com.au
When you buy an instrument, they do not always come with an electronic system fitted, the options you have post purchase are an endpin system, a pre-amp system or clip on system.

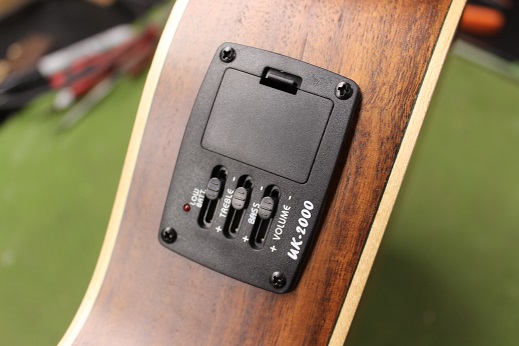

The owner of this ukelele would like a pre-amp system fitted so they can adjust the controls from the outside

Time to install approx 1hr.
Unpacking the pre-amp, we have a pre-amp box, input jack, pieze pickup, soundboard clip for wires and some screws.

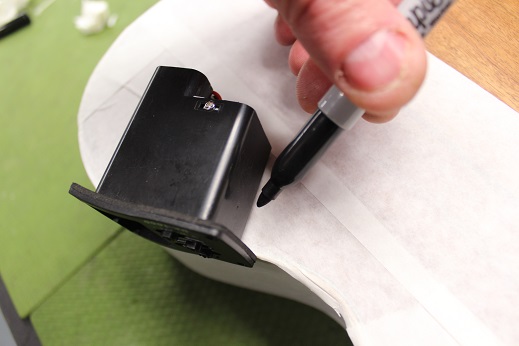

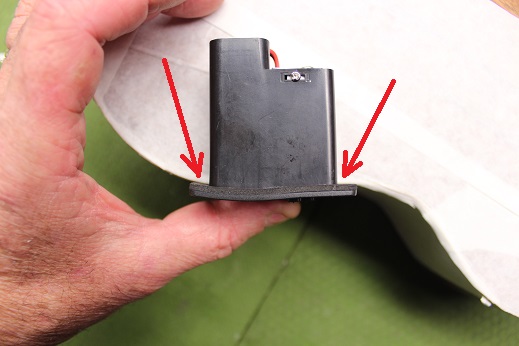

Laying the pre-amp box over the back, we find the best contour match of the pre-amps cover plate.

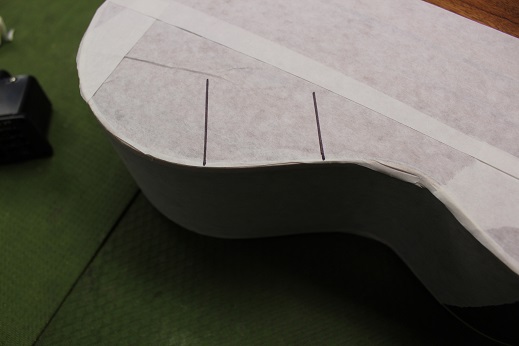

Using a black texta we mark this location.
Like so.

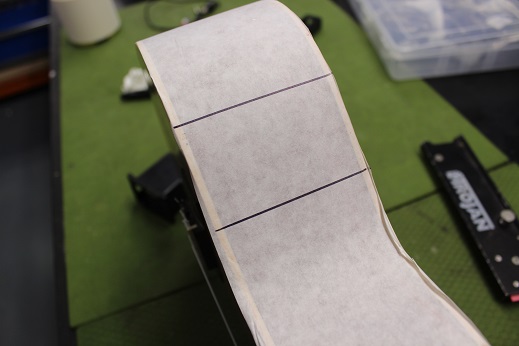

Using a T Square off the top we transfer those lines to the sides of the Ukelele.
Again, like so.
The heigth of the system is 32.76mm, so we need a 33mm hole.

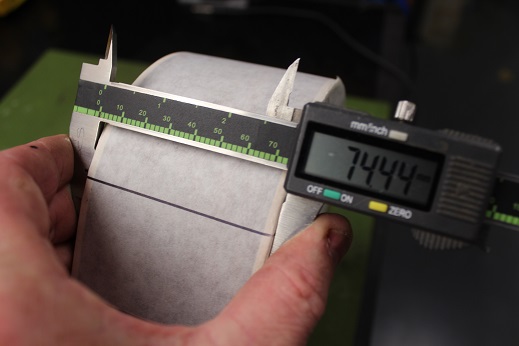

The side height is 74.44mm

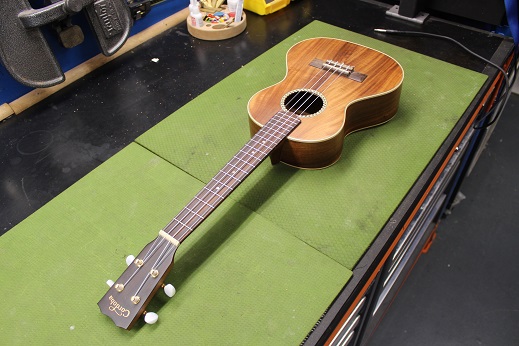

New out of the case Ukelele

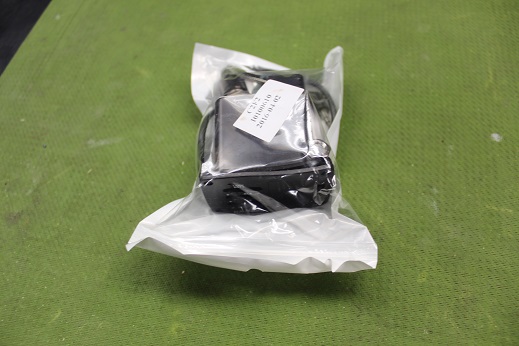

Pre-amp system supplied from Music store.

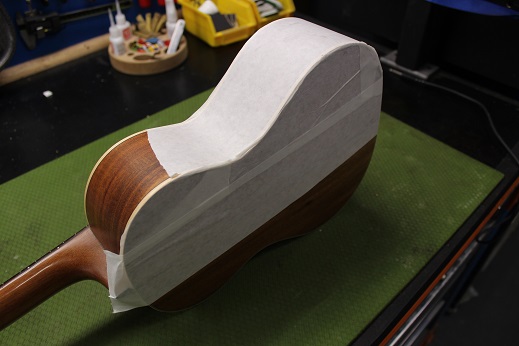

Using some low tack tape we protect the instrument from our tools and markings.
Subtracting the box height from the sides height, we get a location for the pre-amp.

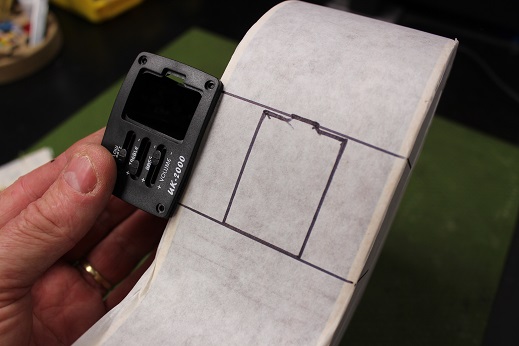

Texta its location.
