Screw fitted, Key fitted all Buffed and Polished,
High E finished
High E finished

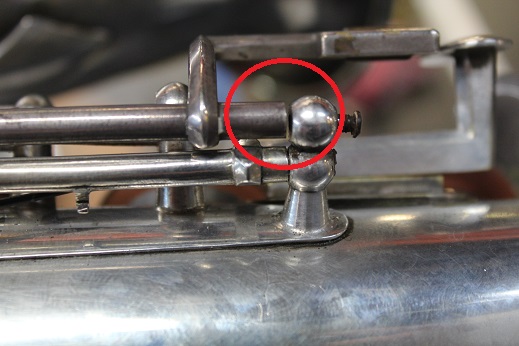

The E Flat (Red circle) has a large gap between the Hinge tube and the Support post

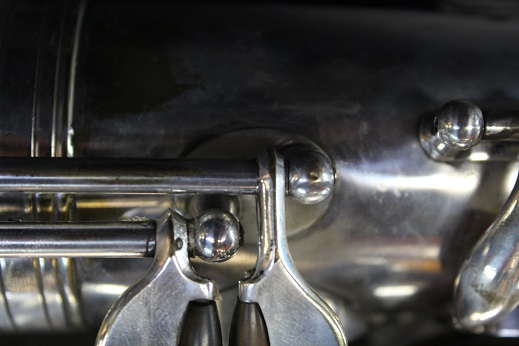

The C Key (Green Circle) end gap is actually pretty good, the contact however is not square.
The C Key (Green Circle) end gap is actually pretty good, the contact however is not square.
Using a set of post facers we can clean up the mating face internally where the screw head bottoms out, this allows the screw to project further out of the post
Some solder work and alignment and bell attached.
Facing the internals

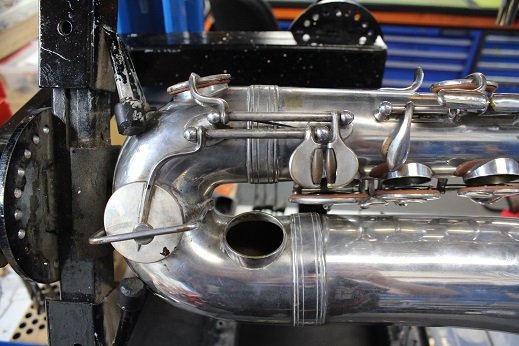

Before I start the bell kework, I remove all keys and prep for refitment of the bell
G# Lever
The lever is extended vee extruding the length of the solid tube as per Repair 2
Key Is buffed
G# lever finished
Key Is buffed
G# lever finished
Distance view of the finished C# Lever
Up close of the end of the assembly
Bell C# Key
Up close of the worn ends
The keys remove as an assembly
P11

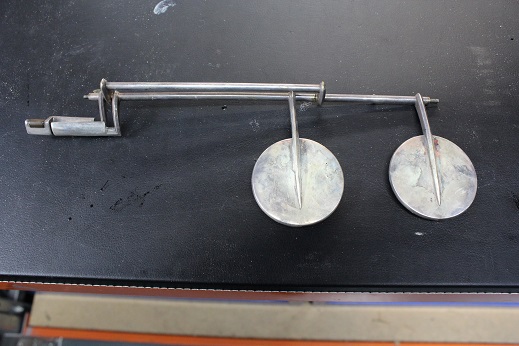

The key is swedged to fit the gap as per Repair 7
All keys on the body tube refitted and regulated
Neck Octave Key
Side play exists and end play exists
Side play exists and end play exists
Bell B and B flat keys
End play exists on the keys, the internal Hinge Rod is badly damaged and worn
End play exists on the keys, the internal Hinge Rod is badly damaged and worn
Cleaned (ultrasonic bath) and installed to my assembly jig
I hand polish the body with Hagertys Silversmith before doing any more mechanical work
I hand polish the body with Hagertys Silversmith before doing any more mechanical work
Bell E-Flat and C Key

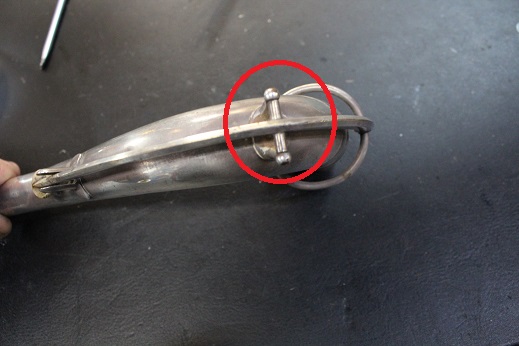

These two keys sit together between two sets of posts attached to the body, they are located with Pivot screws
Due to the excessive gap, the E Flat key was extended as per Repair 7.
The C Key was squared up and lengthened using Repair 2.
Keys Buffed and Polished
Finished Bell E Flat and C keys
The C Key was squared up and lengthened using Repair 2.
Keys Buffed and Polished
Finished Bell E Flat and C keys

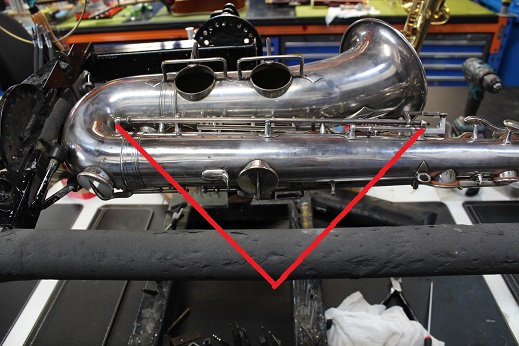

Next one on the que, Mk 6 alto

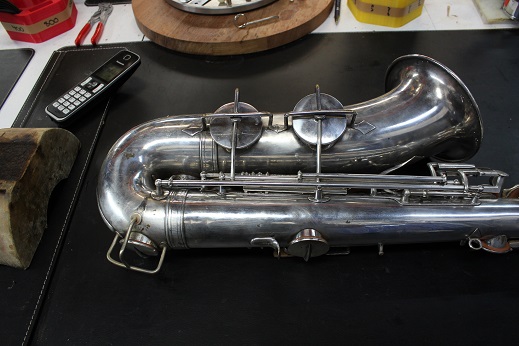

Finished all mechanical work, I test play it before doing any of my silencing corks
The lever is loose between the two pivot screws
The lever is loose between the two pivot screws
Up Close of the C# Support post, the lever is extended vee extruding the length of the solid tube as per Repair 2
Key Is buffed
C# key finished
Key Is buffed
C# key finished
The Keys are extended vee extending the length with a key extension as per Repair 1
The internal Hinge rod is replaced as per Repair 6
Keys are buffed
B and B flat keys finished
The internal Hinge rod is replaced as per Repair 6
Keys are buffed
B and B flat keys finished
