Pistons and Rotors come in for with all sorts of damage, the repair process undertaken is about making ti functional again

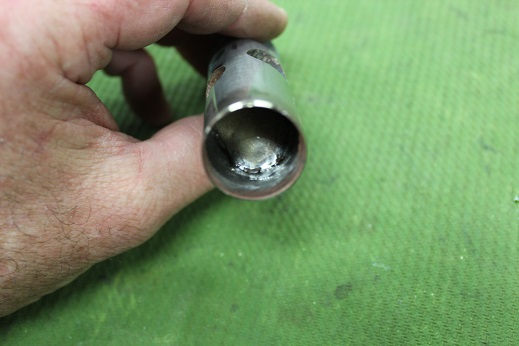

Damaged bottom

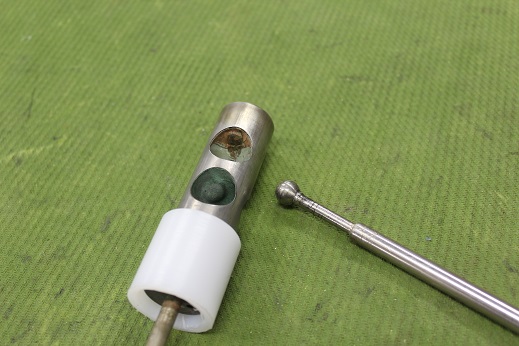

While the base is removed we use a ball to reshape the damaged port

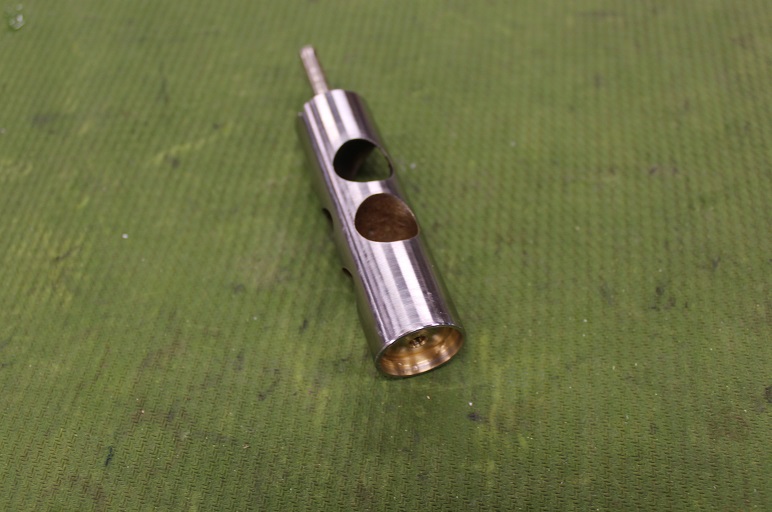

The outside is polished on a buffer, and ready to be refitted.
Copyright © 2017 "Musical Instrument Repairs WA (MIRWA)" · All Rights reserved · E-Mail: service@mirwa.com.au

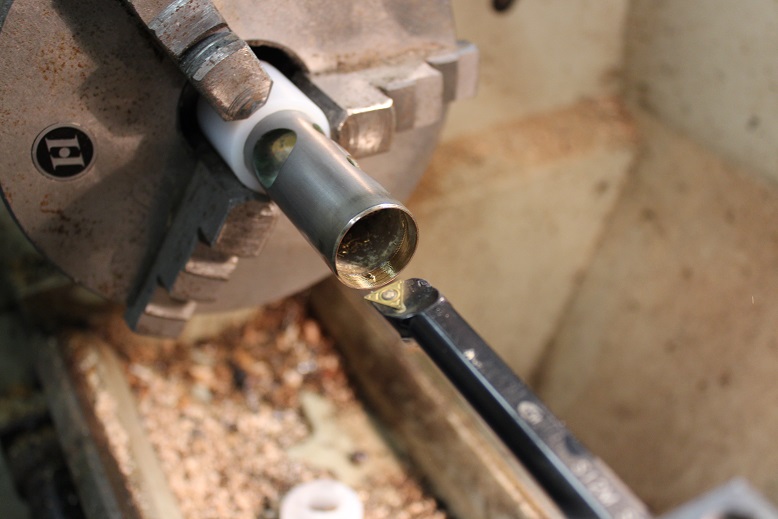

The bottom is bored out

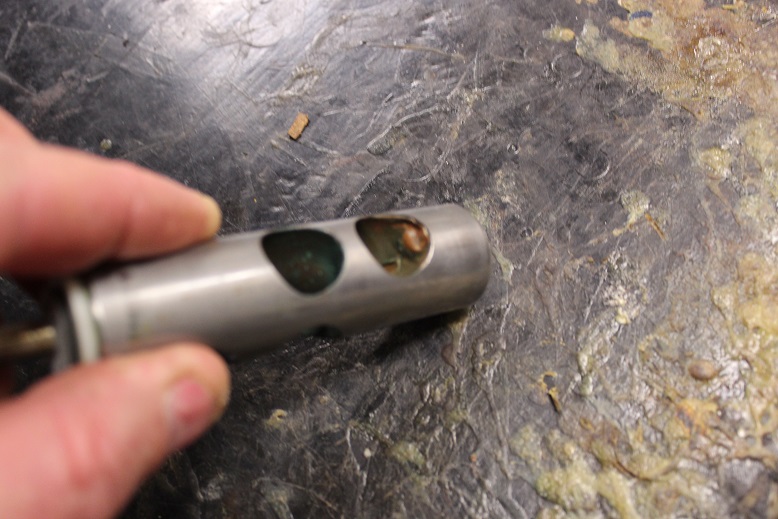

Also damaged bottom port

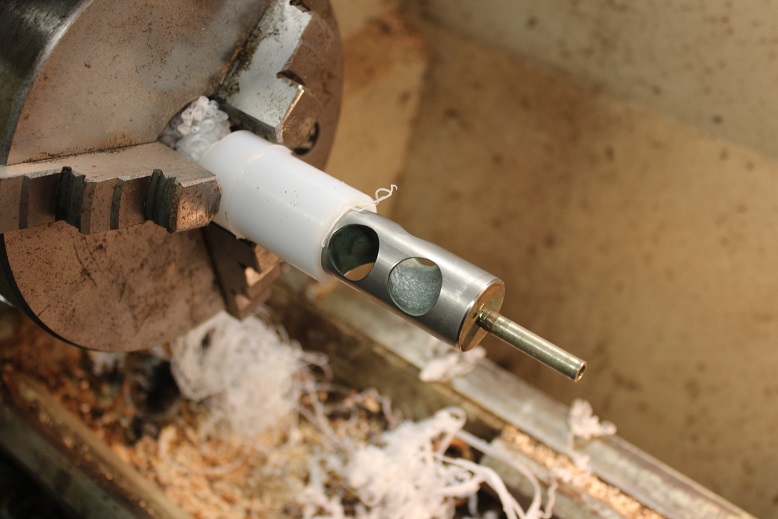

A holder is made for the piston on the lathe
Inner port is chemically cleaned

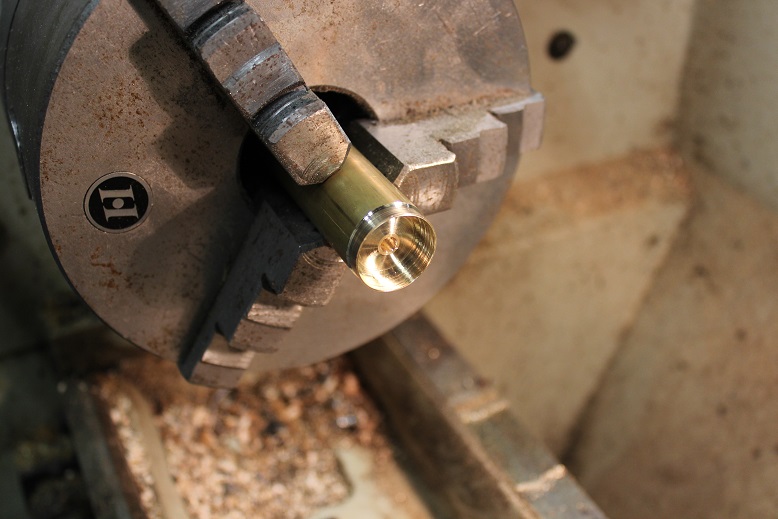

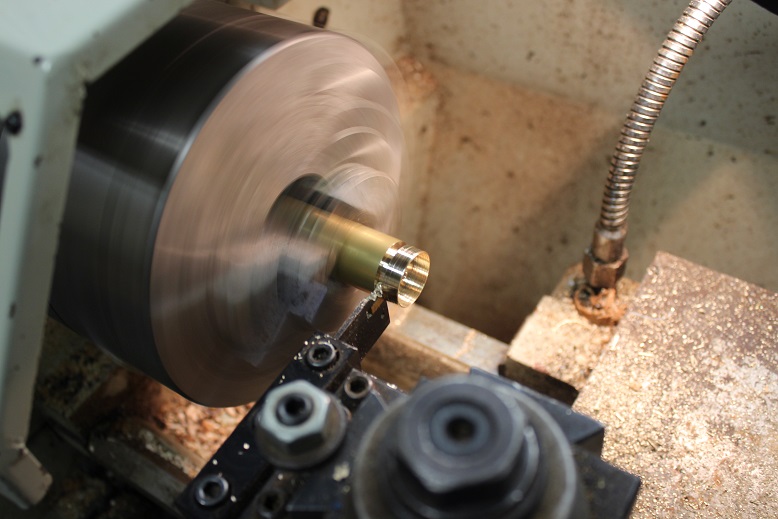

A new cap is fabricated out of brass
Parted and removed
First example:

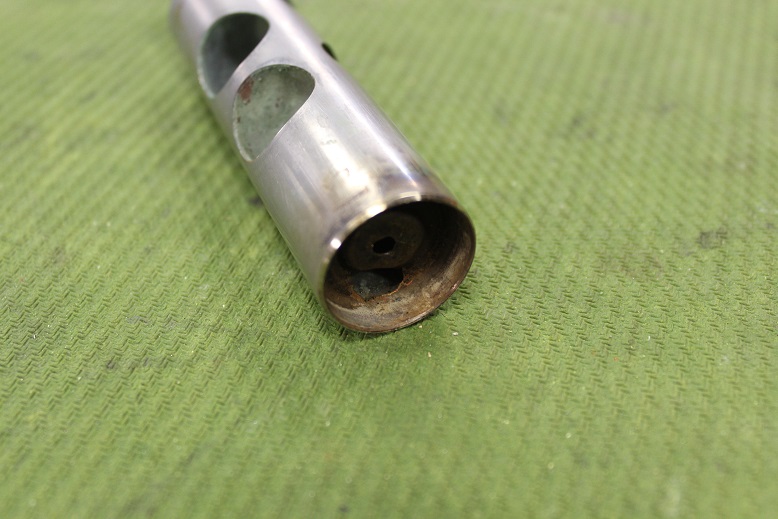

This piston has a hole punched through the bottom, it appears to be in the shape of a screwdriver slot
This piston has a hole punched through the bottom, it appears to be in the shape of a screwdriver slot

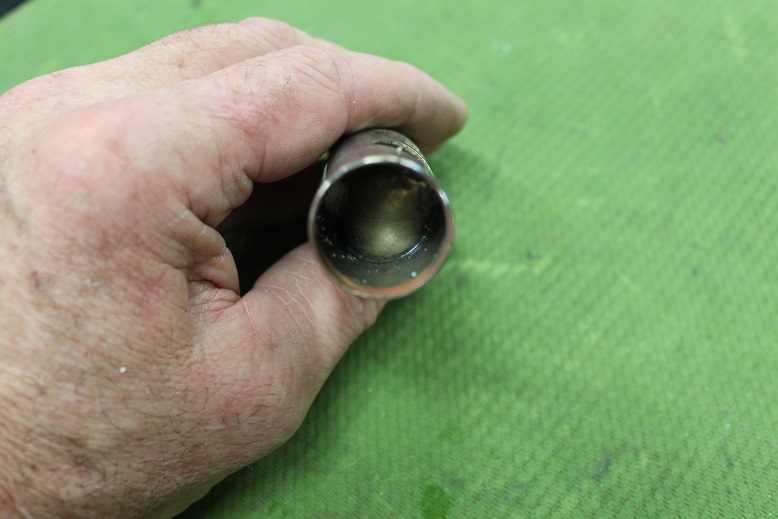

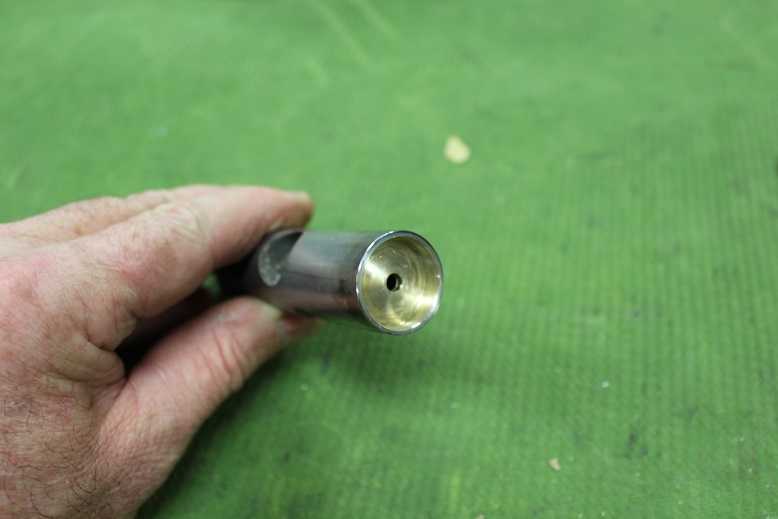

Fit and solder the new machined cap
We repair the torn port with a patch internally and soft solder it in place
